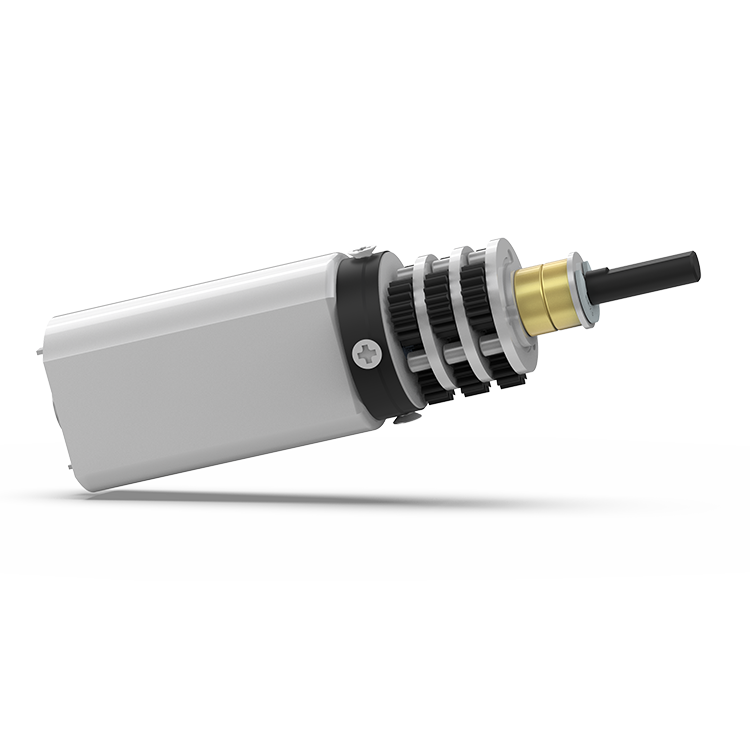

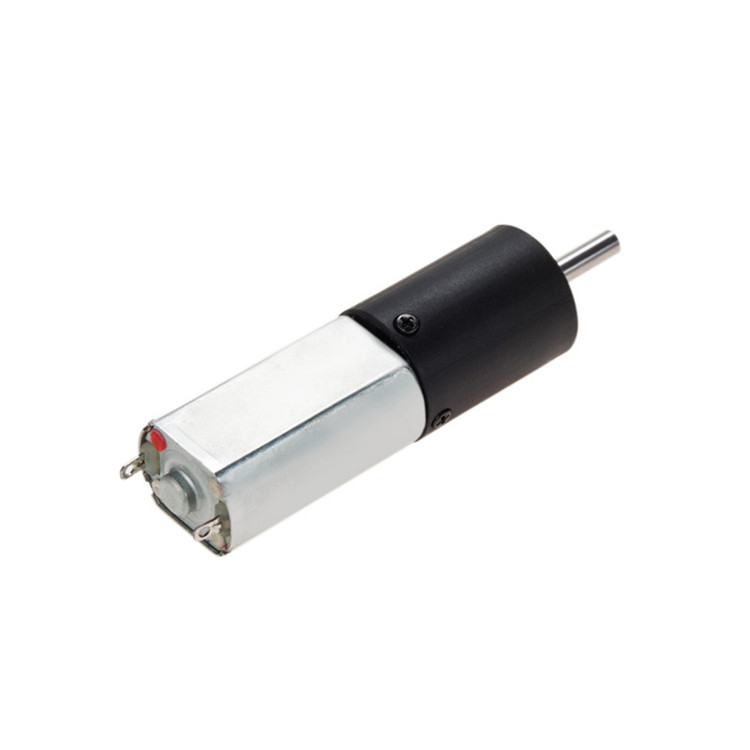

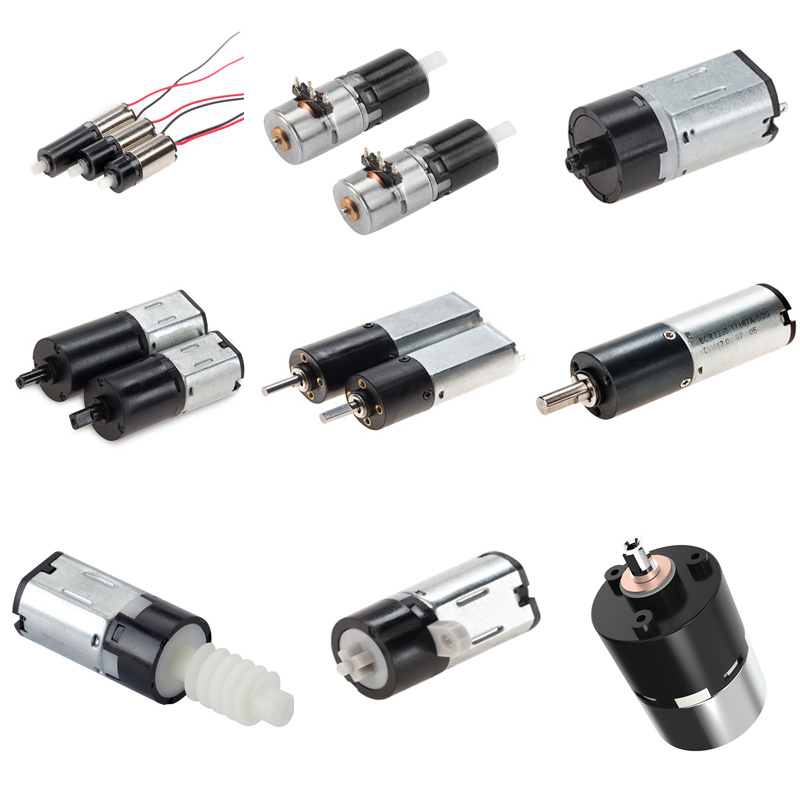

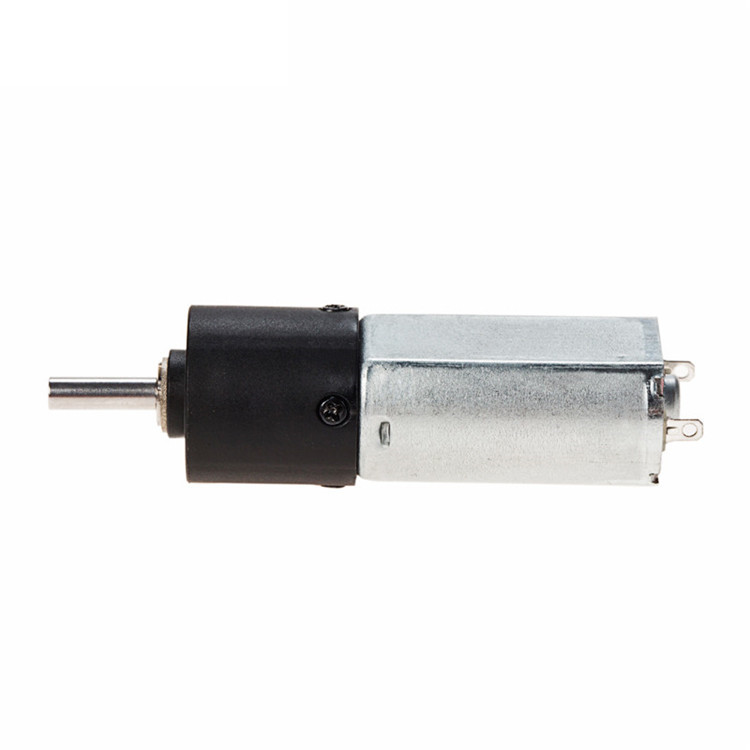

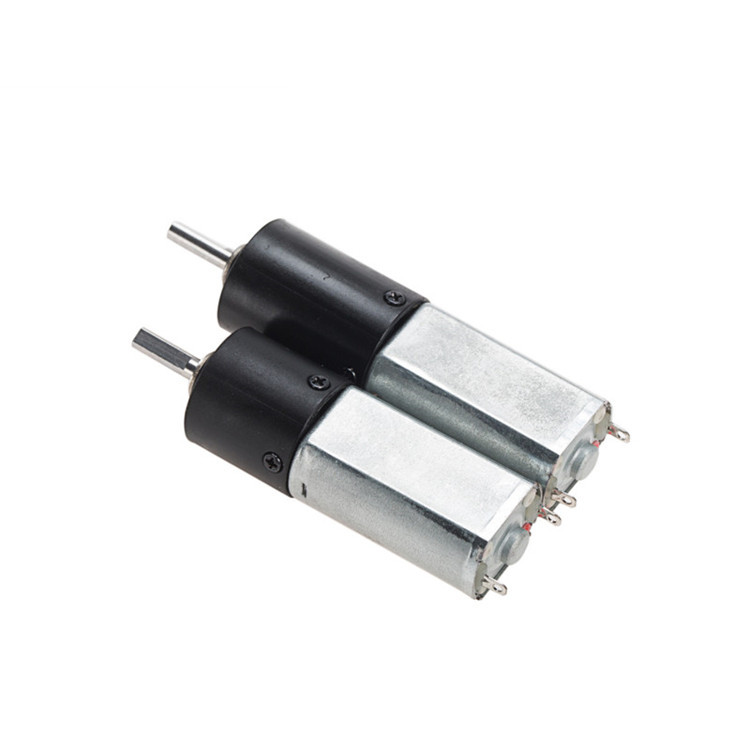

Hot Sale 16mm Stability High Torque Dc Plastic Gear Motor 5V Electric Planetary Reduction Gearbox for Electric Egg Whisk
Hot Sale 16mm Stability High Torque Dc Plastic Gear Motor 5V Electric Planetary Reduction Gearbox for Electric Egg Whisk
Hot Sale 16mm Stability High Torque Dc Plastic Gear Motor 5V Electric Planetary Reduction Gearbox for Electric Egg Whisk
Hot Sale 16mm Stability High Torque Dc Plastic Gear Motor 5V Electric Planetary Reduction Gearbox for Electric Egg Whisk
Hot Sale 16mm Stability High Torque Dc Plastic Gear Motor 5V Electric Planetary Reduction Gearbox for Electric Egg Whisk
1 / 5
Hot Sale 16mm Stability High Torque Dc Plastic Gear Motor 5V Electric Planetary Reduction Gearbox for Electric Egg Whisk
Hot Sale 16mm Stability High Torque Dc Plastic Gear Motor 5V Electric Planetary Reduction Gearbox for Electric Egg Whisk
Hot Sale 16mm Stability High Torque Dc Plastic Gear Motor 5V Electric Planetary Reduction Gearbox for Electric Egg Whisk
Hot Sale 16mm Stability High Torque Dc Plastic Gear Motor 5V Electric Planetary Reduction Gearbox for Electric Egg Whisk
Hot Sale 16mm Stability High Torque Dc Plastic Gear Motor 5V Electric Planetary Reduction Gearbox for Electric Egg Whisk

Hot Sale 16mm Stability High Torque Dc Plastic Gear Motor 5V Electric Planetary Reduction Gearbox for Electric Egg Whisk

Send Inquiry

Product Description

16mm Stability High Torque Dc Plastic Gear Motor 5V Electric Planetary Reduction Gearbox
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Drip-proof
Output Power
0.9-1W
Voltage(V)
5V DC
Efficiency
IE 1
Motor dia.
16mm
Gearbox dia.
16mm
Gear ratio
16-1296
Material
Plastic
OEM & ODM Service
Available
Gearmotor no load current(MA)
50-60
Gearmotor rated load torque(kgf.cm)
0.13~8.6
Gearmotor rated current(MA)
180-200
Gearmotor rated load speed(rpm)
4.5-375
Noise (DB)
<55
Rotation
CW/CCW reversible
Customized
Accepted

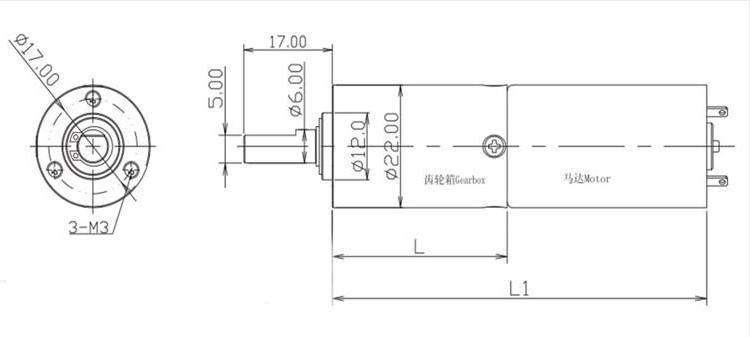

Planetary Reduction Gearbox Detail 1

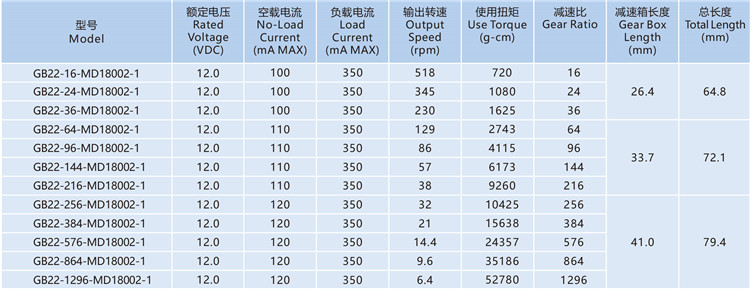

Planetary Reduction Gearbox Detail 2
Planetary Reduction Gearbox Detail 3
Provide micro gear gearbox motor drives system custom services.
Micro Drive System Section Title

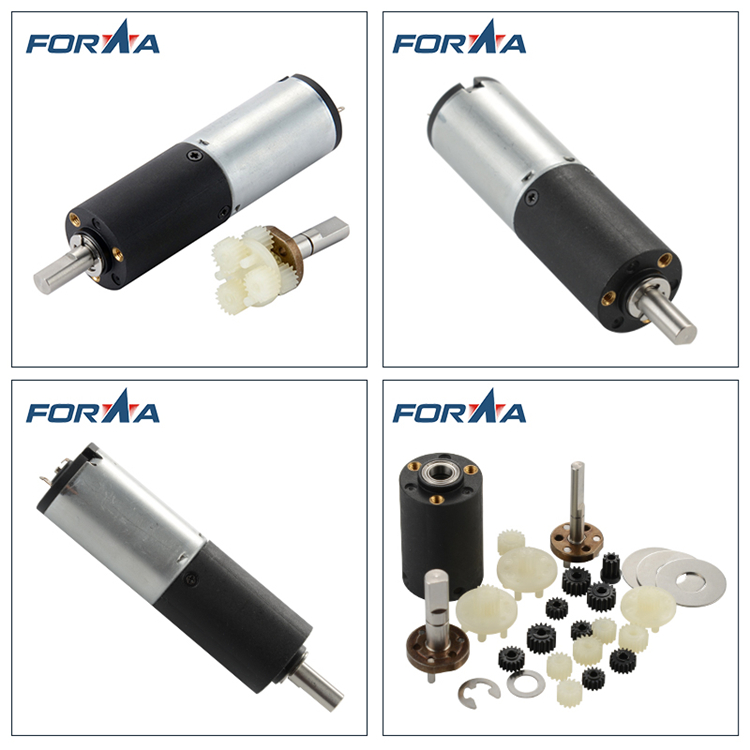

Planetary Gear Motor Showcase 1
Planetary Gear Motor Showcase 2
Planetary Gear Motor Showcase 3
Product Performance Header
Product Technical Dimensions
Product Testing Chart
Product Structural Diagram
Gearbox Application Demo 1
Gearbox Application Demo 2
Gearbox Application Demo 3
Company Profile

Established in 2002, we are a gear transmission solution supplier. We are able to provide a series of services to our respected customers from transmission schemes to finished products.

Main Products:
  • DC Gear Motor
  • Worm Gear Motor
  • Planetary Gear Motor
  • Plastic and metal gearboxes
  • Precise molds
  • Plastic injection parts
  • In addition, customizing various gearboxes per requirement for our customers is our specialty.
Our Certificate

We obtained related certificates of ISO9001, ISO14001 and IATF16949, as well as many kinds of patent certifications.

Our Service
01
Pre-sale
Customer manager 24 hours online service. Inquiries can be replied within 10 minutes.
02
In-sale
Production process transparency, providing images and videos for production progress and schedule.
03
After-sale
Regular customer visits to enquire about satisfaction and maintain zero claims.
04
Quality Control
3-stage quality checks from raw material receiving to finished product. 100% inspection with quality acceptance above 99%.
Frequently Asked Questions
What kind of gear reducer motor can you make?
We can make DC motors from 3V to 36V, with power less than 40W and diameter less than 45mm.
Can the gearbox be matched with other motors?
Our standard gearbox can be matched with other motors. The matched brush, brushless, coreless (hollow cup), and stepping motor need to match the shape of our gearbox, or we can customize the gearbox shape. Proper configuration ensures high efficiency, low loss, and long lifespan.
What options are available for customized gearboxes?
As a gearbox manufacturer with R&D capabilities, we support custom gearbox shapes, reduction ratios, and output speeds. We can develop customized products for you or optimize your existing structures, production, and assembly.
Can you provide planetary gearbox samples for testing free of charge?
To promote cooperation, we can provide samples. While we hope customers understand the costs of sample production and shipping, the sample fee can be refunded upon receipt of your formal order.
What is the quality status of your planetary reducers?
Our gear motors are exported globally to Japan, Germany, the United States, the United Kingdom, Indonesia, Singapore, and other countries. The feedback from most customers highlights stable operation, low noise, and high torque.
What is the delivery time after placing an order?
Generally, we deliver standard gearboxes within 2 weeks. For customized products, samples are typically sent for confirmation within 30-45 days after scheme and drawing validation. Once approved, the final delivery date is confirmed based on order quantity.
